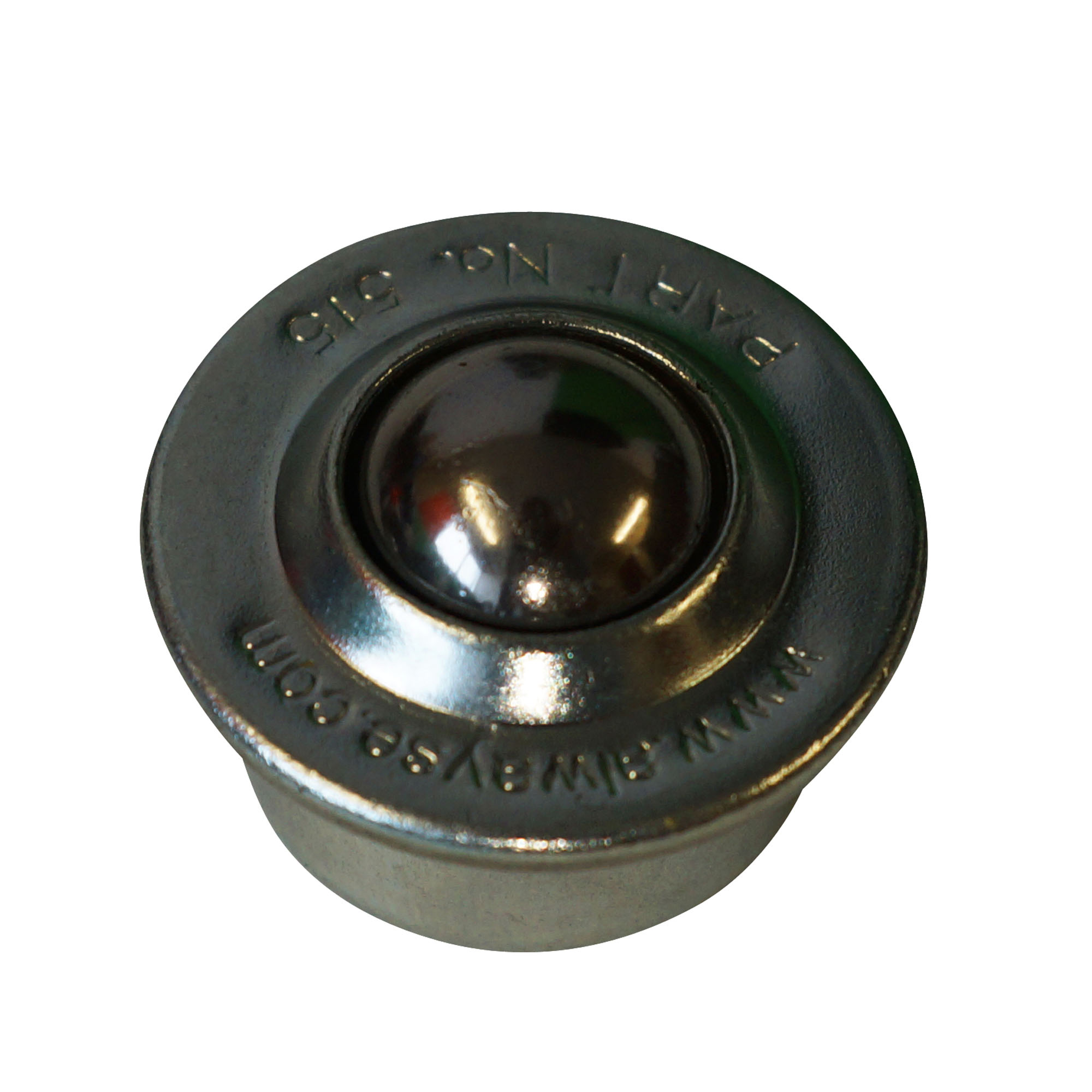

BT515-0-13 Drop In Ball Transfer Unit
Simple drop-in ball transfer unit, can be secured with a variety of clips if required.
• Drop In Fixing
• Ø15.8mm Ball
• Carbon Steel Balls & Housing
• 51 < 100kg Load Capacity Range
Specifications
Load Ball Diameter Ø (mm) | 15.8 |
Max Diameter (mm) - A | 31 |
Working Height of Ball(mm) - B | 9.5 +/- 0.2 |
Body Diameter (mm) - D | 24 +/- 0.065 |
Flange Thickness (mm) - F | 2.8 |
Overall Height (mm) - L | 21 |
Load Ball Material | Carbon Steel |
Support Ball Material | Carbon Steel |
Unit Housing Material | Carbon Steel |
Load Capacity Ranges | 51 < 100 KG |
